Spheres

→ to GitHub project folder For the spherical treadmill we experimented with different spheres and sphere helpers.

For an alternative method of producing the spheres, see the Treadmill Ball Grinders entry on the Interesting Links page.

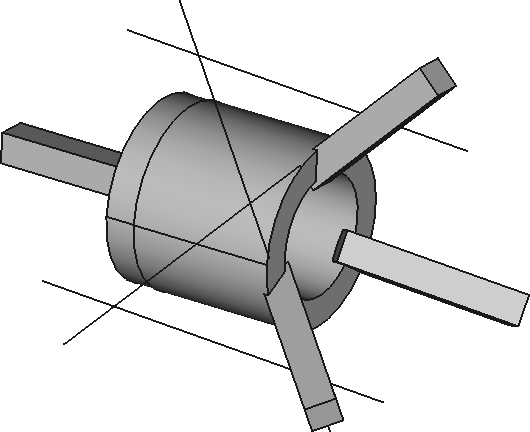

Magnet-Holder_1pc.FCStd: Holder for a cylindrical magnet that fits inside a 9mm sphere.

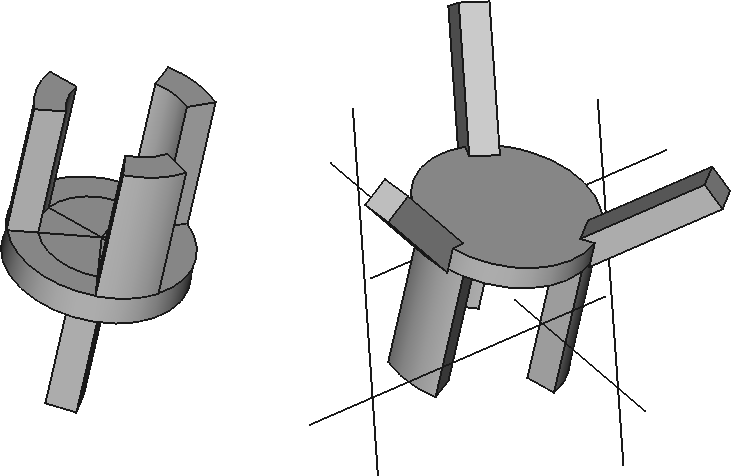

Magnet-Holder_2pc.FCStd: Alternative design for a cylindrical magnet holder.

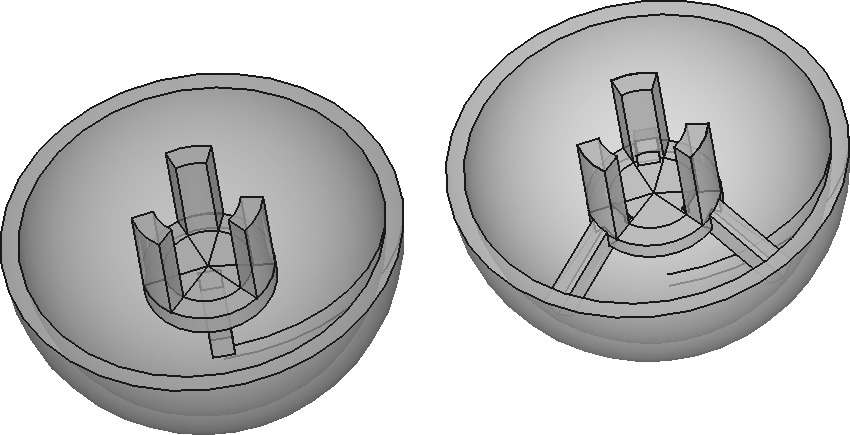

Sphere-9mm.FCStd: Basically the Magnet holder design inside a sphere. Sphere-10mm.FCStd is basically the same, just with a 10mm sphere.

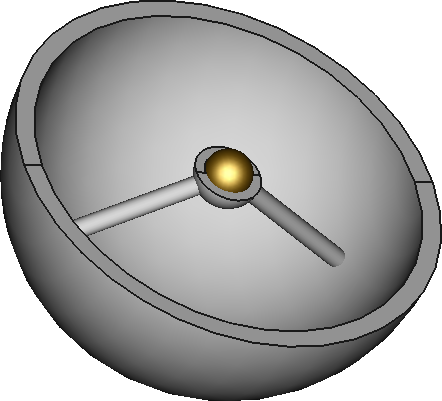

Sphere-9mm_Magnet-1mm.FCStd: Holder for a spherical magnet inside a 9mm sphere.

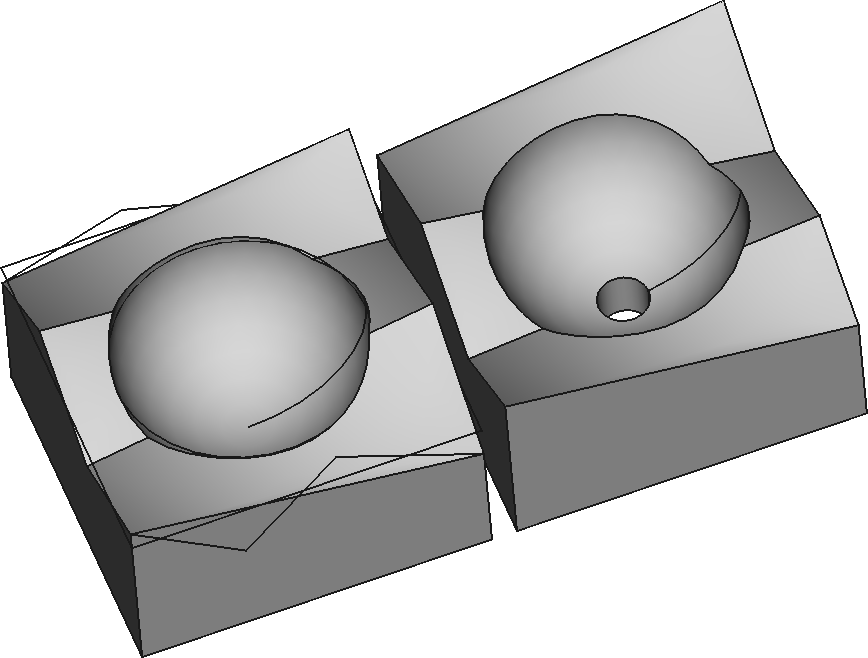

Mold-10mm.FCStd: Mold intended to form 10mm spheres from polymer clay.
